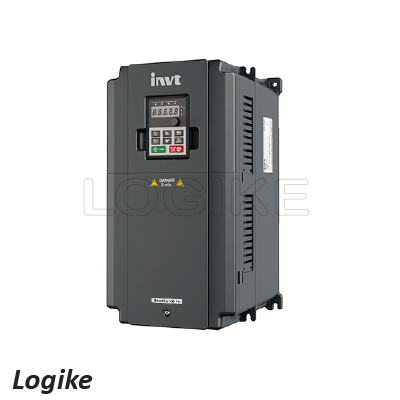

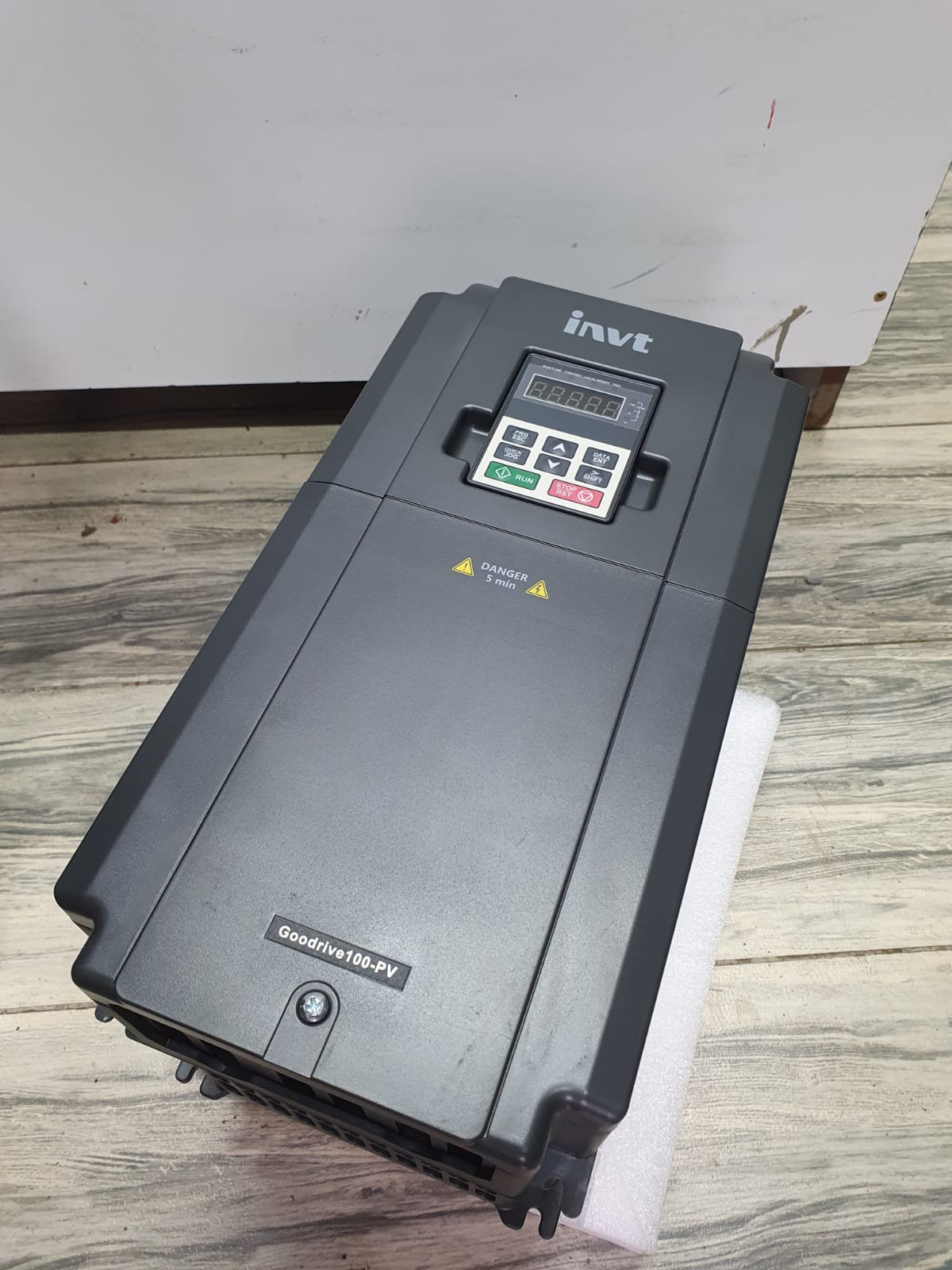

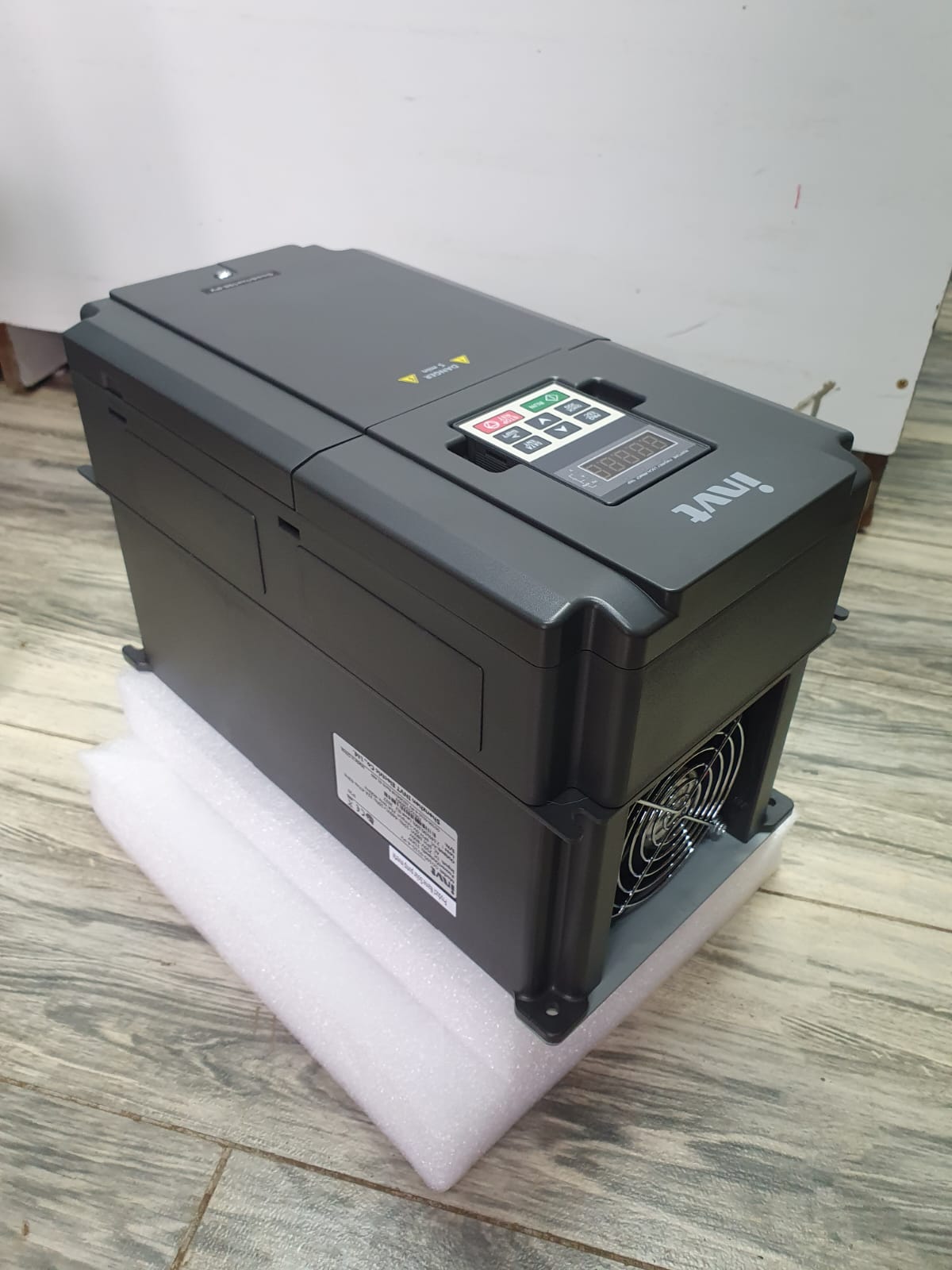

INVT 5.5Kw (7.5Hp) 3 Phase Solar Pumping Inverter

INVT 5.5KW (7.5HP) THREE PHASE SOLAR PUMPING INVERTER

•  Model : GD100-5R5G-4-PV
• Rated Output : 5.5 KW
• Rated Input Current : 19.5 A
• Rated Output Current : 14 A
• AC Input Voltage : 380 V (-15%) ~ 440 V (+10%) – Three Phase
• Maximum Input DC Voltage : 800 V
• Starting Voltage : 300 V
• Minimum Operating Voltage : 250 V
• Recommended DC input voltage range : 300 V ~ 750 V
• Recommended MPP voltage : 550 V
• Rated output voltage : 3 Phase – 380 V
• Output frequency range : 0 ~ 400 Hz
• MPPT : 99%
• Installation mode : Support wall-type, rail-type and flange-type installation
• Ambient temp : -10℃~＋50℃, de-rate by 2% per every additional 1℃ if the temp is above
• Elevation : Below 1000m; de-rate by 1% per every additional 100m if the elevation is above 1000m
• Cooling mode : Air cooling
• 24 months warranty




Call or whatsapp for orders & inquiries via +254703163326

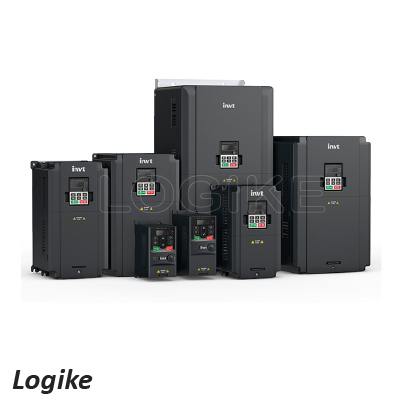

● Comprehensive voltage level and power range
Support single phase/three phase 220V, and three phase 380V solar water pump VFD, power from 0.4kW to 110KW

● Easy to use
Simply connect the photovoltaic panel to the VFD, no need to set any parameters, and the PV pump can be automatically started after power-on

● Multiple protection measures
It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product

● Advanced MPPT algorithm
Ensure solar power tracking efficiency can reach 99%

● Boost module
2.2KW and below models can be equipped with boost module to meet the needs of low voltage operation, which can reduce solar panel configuration and reduce user system cost

● GPRS remote monitoring
Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP

● AC/DC switching scheme
All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work

● IP54 solution
Supports IP54 grade cabinet solutions
